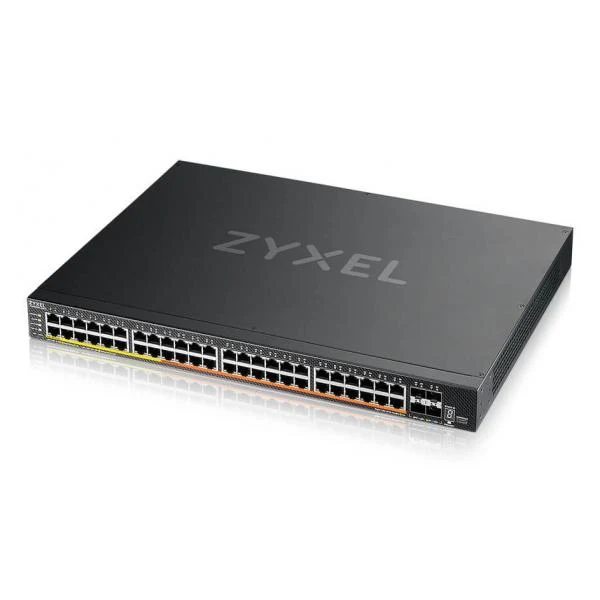

Zyxel XMG2230-52HP Gestito L2/L3 2.5G Ethernet (100/1000/2500) Supporto Power over Ethernet (PoE) 1U Nero [XMG2230-52HP-ZZ0101F]

Zyxel XMG2230-52HP Gestito L2/L3 2.5G Ethernet (100/1000/2500) Supporto Power over Ethernet (PoE) 1U NeroFlexible Multi-Gig port configuration for diversified deploymentsThe XMG2230-28HP offers PoE-capable 2.5G Multi-Gig ports, while the XMG2230-52HP provides a mix of 1G and 2.5G PoE ports. Both models include four 10G SFP+ fiber uplinks for high-speed connectivity. The 52-port model’s port mix enables efficient bandwidth allocation based on device needs, balancing cost and performance for scalable, future-proof networks.Dual power foralways-on connectivityThe XMG2230 Series is designed with superior network resiliency in mind, featuring dual power sources: an internal AC input as the primary source and an optional DC input for connection to an external DC power system. This active-standby power redundancy enables automatic switchover to backup power if the main AC source fails. The dual power design helps prevent unexpected outages and ensures stable, 24/7 connectivity.High-power, adaptive PoE for modern business devicesThe XMG2230-28HP supports PoE++ on all ports, while the XMG2230-52HP offers a mix of PoE+ and PoE++ for greater deployment flexibility. The series provides adaptive PoE power budget with either internal AC power 700W (28HP)/960W (52HP) or external DC power system 1440W (28HP)/2400W (52HP). It is built for higher capacity, improved efficiency, and reliable operation in demanding environments such as high-performance WiFi, video conferencing, IP surveillance, thin/zero clients, smart building, IoT, and AV applications.Segment your networkmore effectively for securityDesigned for SME networks, this series of switches supports full L2 feature sets such as VLAN, ACL, port aggregation, and mirroring, along with advanced security to keep your business protected. It also provides essential L3 access features for converged voice, video, and data. With support for static routing, the switches ensure efficient traffic flows across your network, while the built-in DHCP server simplifies device onboarding and reduces IT overhead.Click. Tap. Done.Get up and running in minutes with the Nebula mobile app. With just a few simple clicks, our user-friendly step-by-step wizard walks you through the entire installation process, no technical expertise required.Once connected, the intuitive interface gives you complete control, making it easy to adjust settings, monitor performance and manage your network anytime, anywhere.Search: Zyxel Nebula MobilePowerful, effortless andscalable connectivity.With Nebula, you can manage your entire network – wireless, switching, security and LTE/5G – through a single centralized cloud platform. Deploy and configure devices quickly and remotely, without the need for extra hardware controllers or software.Whether you're managing one site or many, Nebula delivers real-time monitoring, instant alerts and complete network visibility – anytime, anywhere.Scale confidently, simplify operations and stay secure – all through one intuitive platform.Dedicated networkedAV modeThe Networked AV mode in standalone mode simplifies deployment with an intuitive setup wizard and AI-driven auto-configuration. A visual dashboard highlights key AV settings like IGMP, while a simplified menu streamlines management. With high performance plus built-in Dante and AES67 profile support, the XMG2230 ensures smooth, reliable AVoIP streaming for professional AV environments.

Gestito in Cloud	Sì
Tipo di porte RJ-45	2.5G Ethernet (100/1000/2500)
Frequenza di ingresso AC	50/60 Hz
Umidità	5 - 95%
RAM installata	1000 MB
Profondità imballo	503 mm
Caratteristiche DHCP	DHCP Option 60, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 snooping
tipo di autenticazione	IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+
Funzione IP-MAC-Port binding	Sì
Certificati di conformità	BSMI, Direttiva sulla bassa tensione (LVD), RoHS
Peso	5,03 kg
Voltaggio input DC	50 - 57 V
Tipo Power over Ethernet (PoE) supportato	PoE+, PoE++ (4PPoE)
entrate d'avviamento	64
Controllo Broadcast storm	Sì
Protezione/Filtro BPDU	Sì
Standard di rete	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
Configurazione dei parametri di localizzazione (CLI)	Sì
Certificazione	FCC Part 15 (Class A)CE EMC (Class A)BSMI EMC
Impilabile	Sì
Consumo energetico (max)	2525 W
Fonte di alimentazione inclusa	Sì
Algoritmi di sicurezza supportati	SNMP, SNMPv2, SNMPv3
Range di umidità di funzionamento	5 - 95%
Dissipazione del calore	4153,7 BTU/h
Tensione di ingresso AC	100 - 240 V
Autenticazione	VLAN Guest, Autenticazione basata su MAC
Profondità	330 mm
Alimentazione	AC/PoE
Montaggio rack	Sì
Quantità di porte RJ-45	48
Tempo medio tra guasti (MTBF)	401112,3 h
Buffer di memoria di pacchetto	2 MB
Supporto Power over Ethernet (PoE)	Sì
Livello del commutatore	L2/L3
Fattore di forma	1U
Larghezza imballo	580 mm
Supporto qualità del servizio (QoS)	Sì
tasso di inoltro	166,6 Mpps
Console port	RJ-45/USB Type-C
Funzione IGMP snooping	Sì
Limitazione della velocità	Sì
Capacità di commutazione	224 Gbit/s
Ispezione ARP	Sì
Intervallo temperatura di funzionamento	-20 - 50 °C
Dimensioni tavola MAC	32000 voci
Mirroring della porta	Sì
Bilancio energetico totale del PoE	2400 W
Porta di sicurezza statica	Sì
Supporto multicast	Sì
Frame Jumbo	12
Protocollo di registrazione GARP VLAN (GVRP)	Sì
Intervallo di temperatura	-40 - 70 °C
Caratteristiche della LAN virtuale	IP subnet–based VLAN, Policy-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Emissione acustica	63,76 dB
IGMP proxy	Sì
Tipo interruttore	Gestito
Colore del prodotto	Nero
Indicatori LED	Sì
Caratteristiche IPv4 e IPv6	Dual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet
Larghezza	441 mm
Numero di interfacce IP	32
Memoria flash	64 MB
Peso dell'imballo	7,33 kg
Tecnologia Ethernet su cavi in rame	2.5GBASE-T, 100BASE-T, 1000BASE-T
Altezza	44 mm
Routing basato su criteri	Sì
Quantità di slot del modulo SFP+	4
Supporto SSH/SSL	Sì
Numero di instradamenti statici	4000
Supporto 10G	Sì
Instradamento statico	Sì
Supporto Jumbo Frames	Sì
Altezza imballo	95 mm
