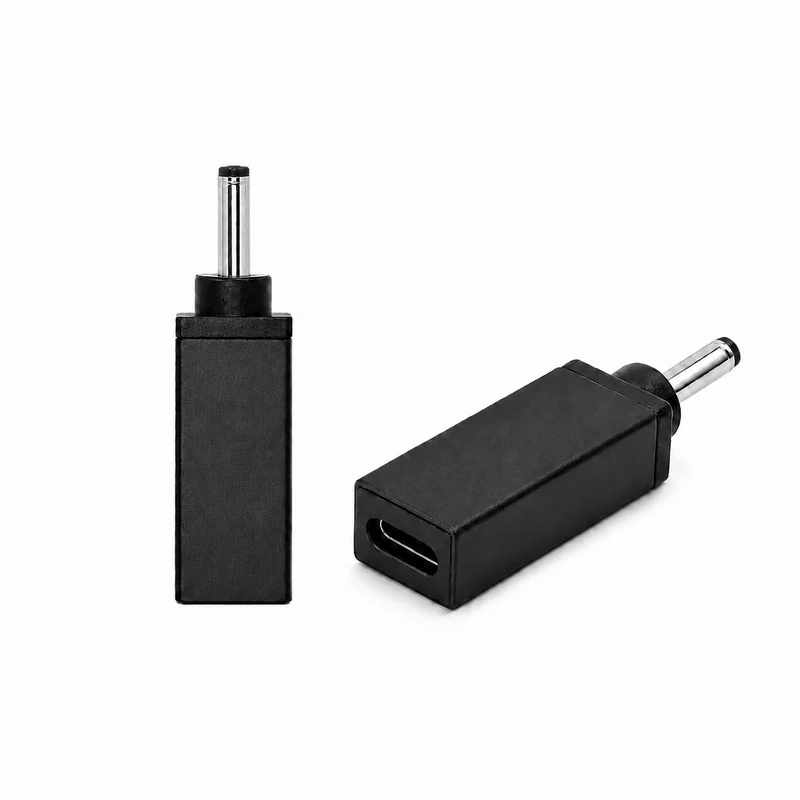

USB-C to DC Adapter for Universal Tip B

Power Compaq, Delta, ASUS, and Samsung Laptops from Any USB-C PD Charger

The SlimQ C0114 converts a compatible USB-C PD charger into a stable DC round-tip power source, delivering up to 100W to laptops equipped with a 4.8 × 1.7mm (Universal Tip B) barrel port. Compatible with select Compaq, Delta, ASUS, and Samsung models.

Intelligent PD Negotiation — Up to 100W Output

A built-in PD recognition chip actively negotiates the required power profile from your USB-C PD charger and outputs 18.5V–20V DC at up to 5A. Your laptop receives the correct voltage it expects — reliably and consistently.

Compact Design for Travel and Daily Use

At just 48 × 13mm, the C0114 is slim enough to carry in any bag or pocket. It replaces bulky proprietary barrel-plug adapters, making it ideal for travel, hot-desking, and everyday use with a single USB-C PD charger.

Durable Aluminum Alloy Construction

The aluminum alloy housing provides a secure, stable connection and long-term durability in a lightweight 7.9g body. Available in Black.

Product Specifications

• Model: C0114
• Product Type: USB-C PD to DC Power Adapter
• Input Connector: USB Type-C Female

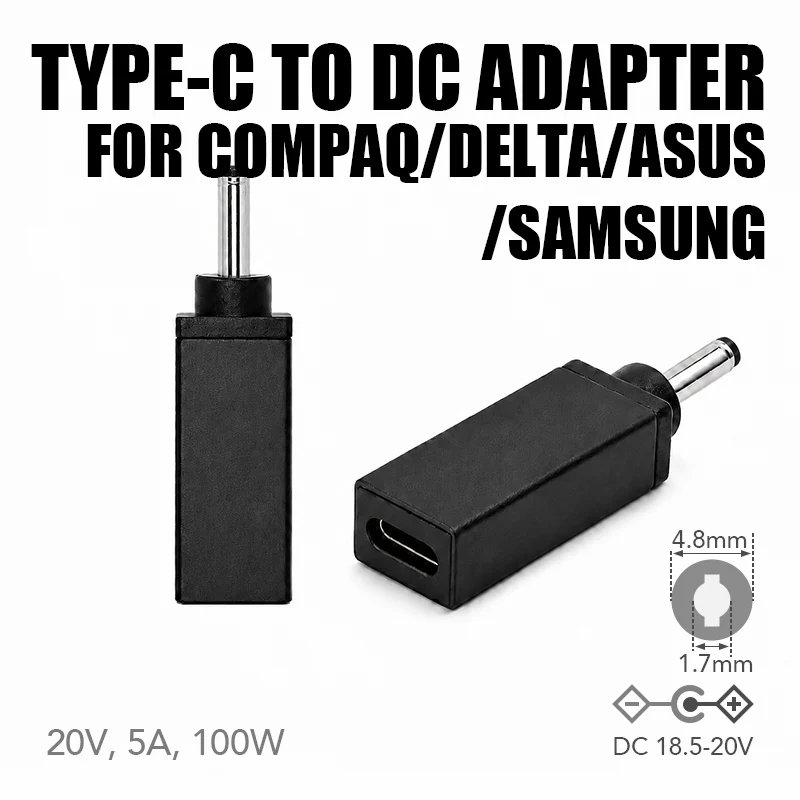

• Output Connector: DC 4.8 × 1.7mm Male (Universal Tip B)
• Output Voltage: 18.5V–20V DC
• Maximum Output Current: 5A
• Maximum Output Power: 100W
• Built-in Chip: PD Recognition Chip
• Compatible Brand: Compaq / Delta / ASUS / Samsung
• Compatible Port: Laptops with a 4.8 × 1.7mm round DC barrel port
• Material: Aluminum Alloy
• Color: Black

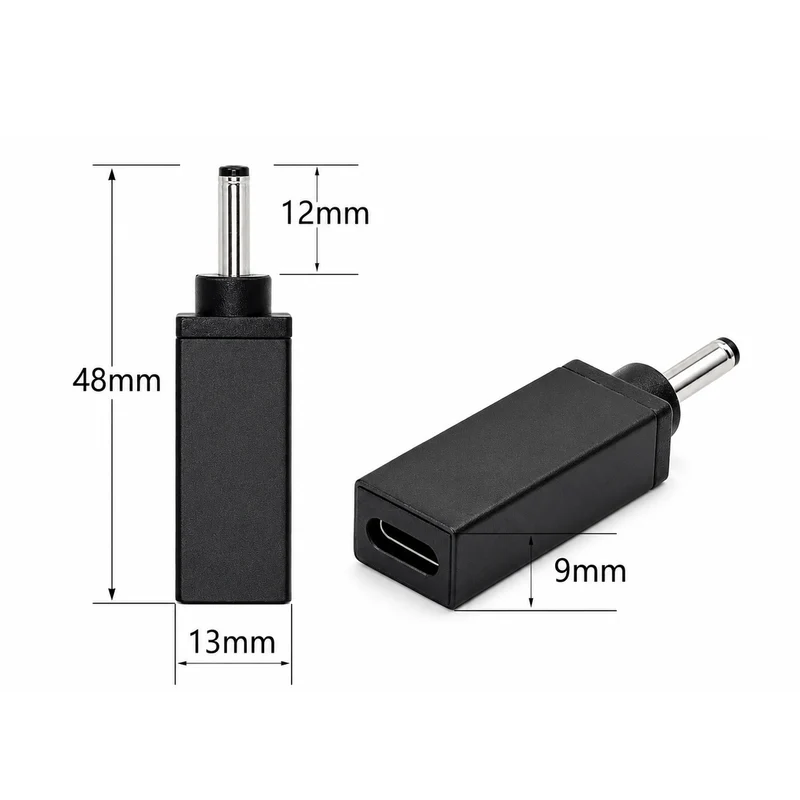

• Dimensions: 48 × 13mm
• Net Weight: 7.9g
• HS Code: 8536.90.1100

Style Options

• C0114 — USB-C Female to DC 4.8 × 1.7mm Male, Universal Tip B, Black

Frequently Asked Questions

Q: Which laptops are compatible with this adapter?
This adapter is designed for laptops with a 4.8 × 1.7mm (Universal Tip B) round DC barrel port from Compaq, Delta, ASUS, and Samsung. Always verify your laptop’s port size, required voltage (18.5V–20V), and wattage before purchasing.

Q: Does this adapter work with any USB-C charger?

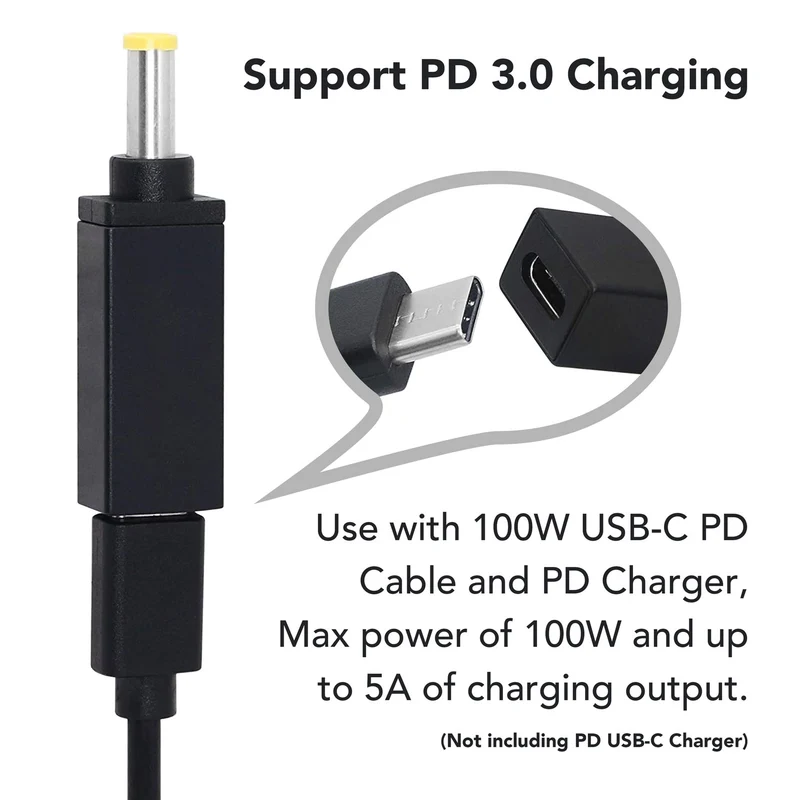

A USB-C PD charger and a compatible high-quality USB-C cable are required. The built-in PD chip negotiates the correct power profile; however, actual output is limited by your charger’s rated wattage, cable quality, and the connected device.

Q: Can I use this adapter outside the United States?
Yes — this adapter converts the USB-C signal to DC output only. Compatibility with local power grids depends entirely on your USB-C PD charger. If traveling internationally, ensure your charger supports the local voltage and frequency, or use an appropriate travel adapter.

Q: Is this adapter safe to use?
Yes. The C0114 features a built-in PD recognition chip for stable voltage regulation. Always use a quality USB-C PD charger and cable rated for at least 100W to ensure safe and reliable operation.

Note: All dimensions are measured by hand, there may be small deviations.
