ASUS Mini Port DC Adapter Tip - 280W
Descrizione
SlimQ ASUS Slim Power Jack Adapter — DC 5.5 × 2.5mm to ASUS Mini Port | Up to 280W
A DC-to-DC power connector that connects a SlimQ GaN charger (5.5 × 2.5mm DC output) to 2024–2025 ASUS laptops using the new Mini Port (Slim Power Jack) flat rectangular connector. Supports up to 280W. Available in three connector styles: Cable, Tip, and 90° L-Shaped.
Note: This adapter is designed for 2024+ ASUS laptops with the new Mini Port (Slim Power Jack) connector. It is NOT compatible with 2023 or earlier ASUS models that use the older round barrel DC jack.
Connect Your ASUS Laptop to a SlimQ GaN Charger
Bridges the standard DC 5.5 × 2.5mm charger output to the flat rectangular ASUS Mini Port (Slim Power Jack) found on select ROG, TUF Gaming, ProArt, and Zephyrus laptops released in 2024–2025. Plug-and-play — no drivers or software required.
Supports Up to 280W
Rated for up to 280W charging, suitable for high-performance ASUS gaming and creator laptops. Compatible with SlimQ 240W, 330W, and upcoming 500W DC GaN chargers.

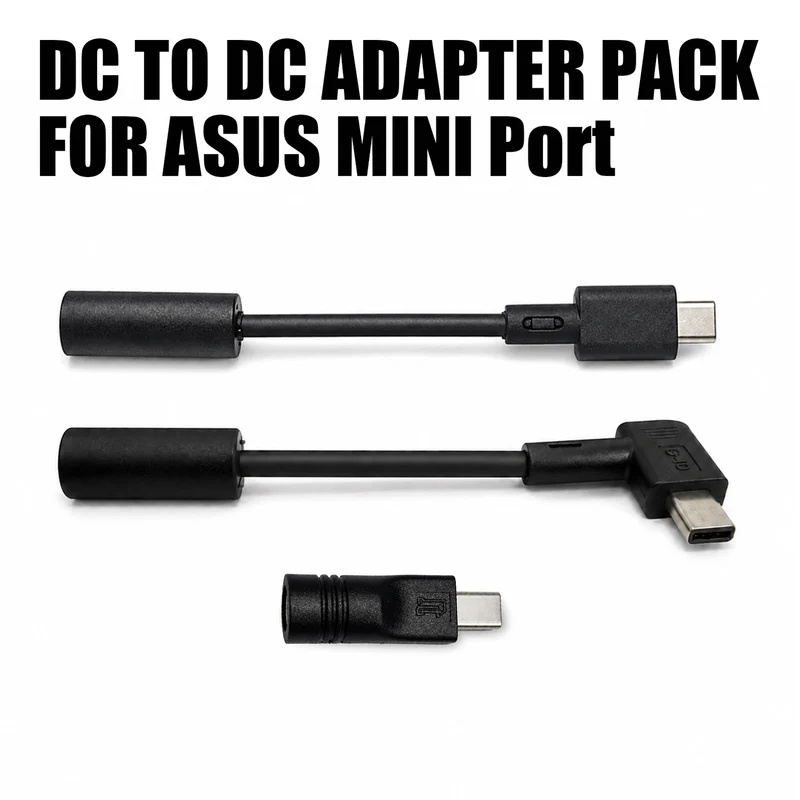

Three Connector Styles to Choose From
Select the variant that best fits your setup and workflow.
Style Options

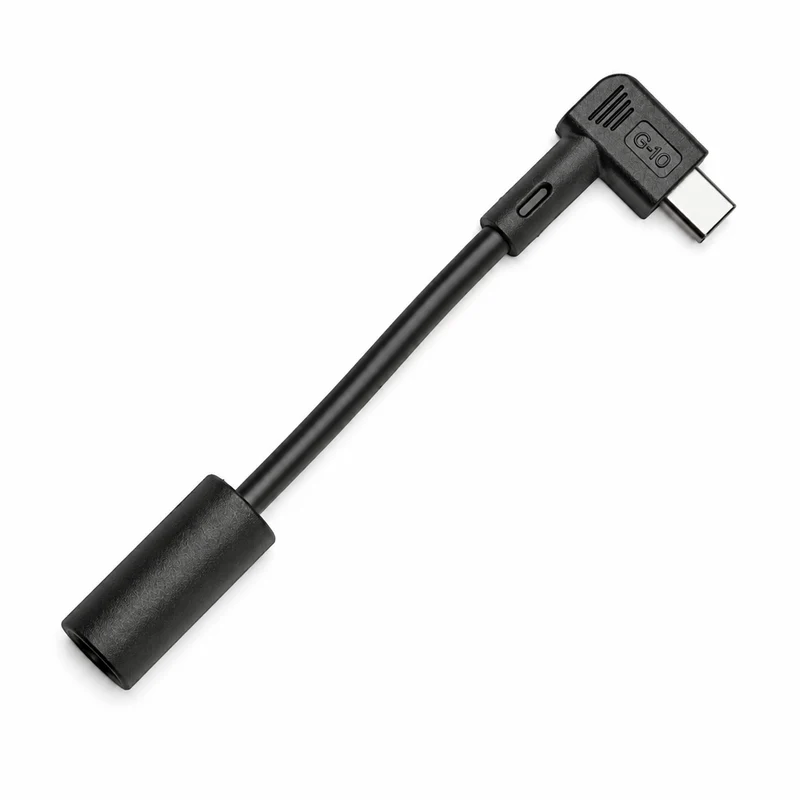

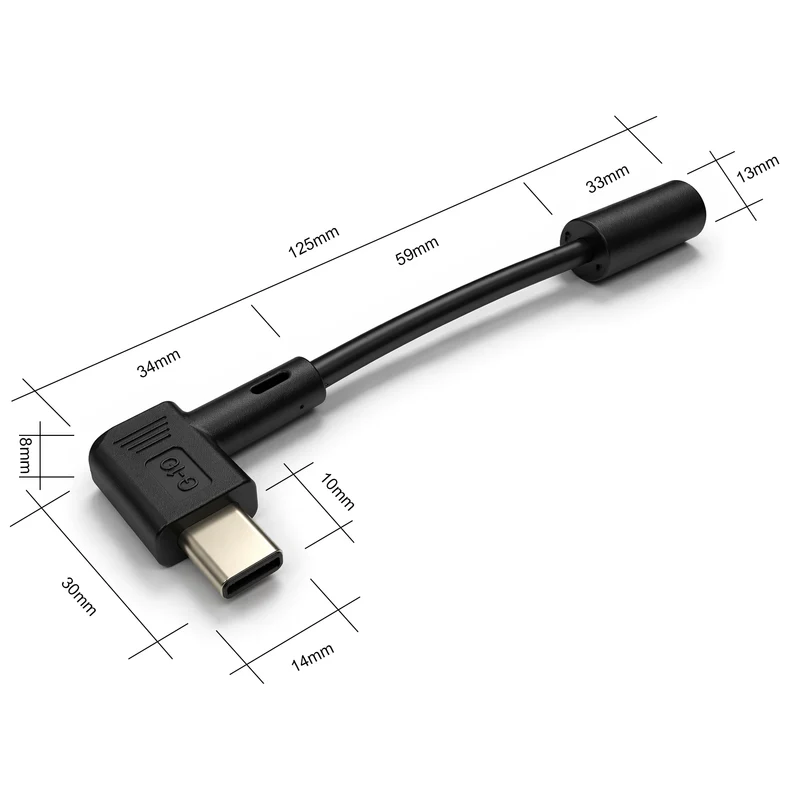

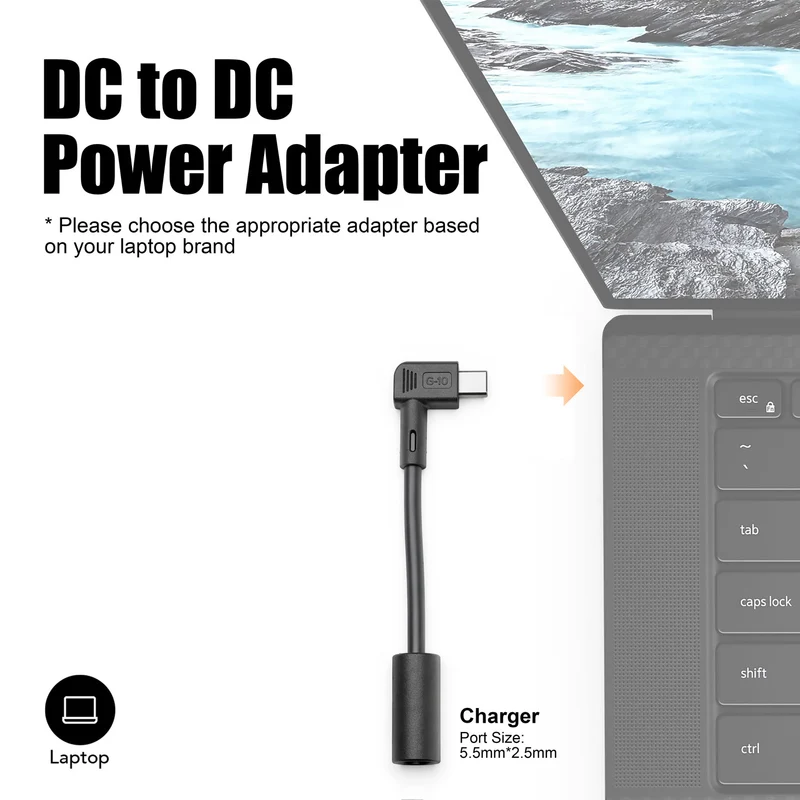

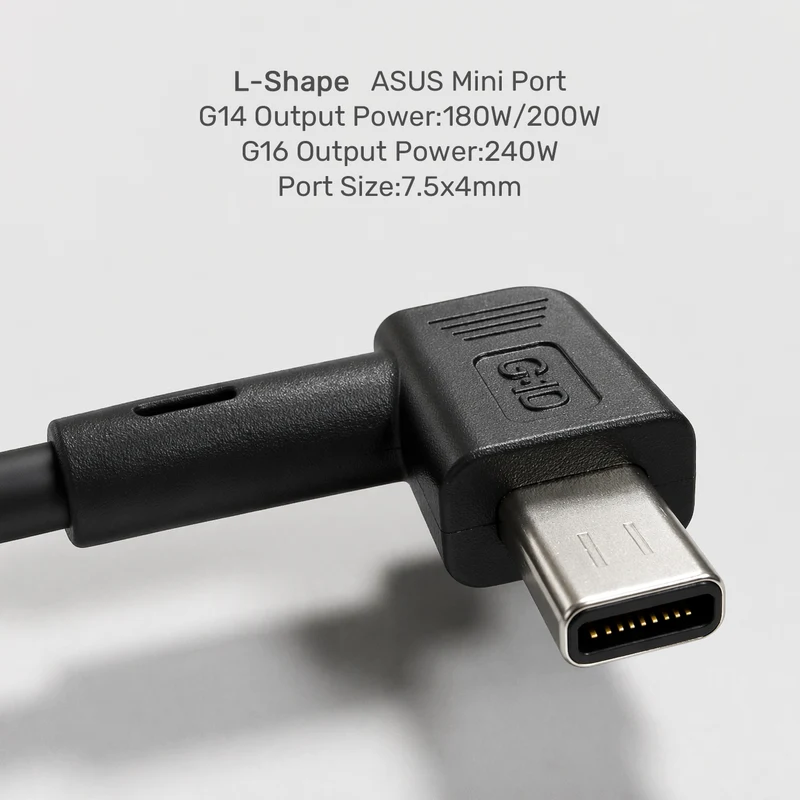

- 90° L-Shaped — ASUS Mini Port ($20.99): Angled cable that keeps the connection low-profile and reduces port strain. Ideal for tight desk setups.

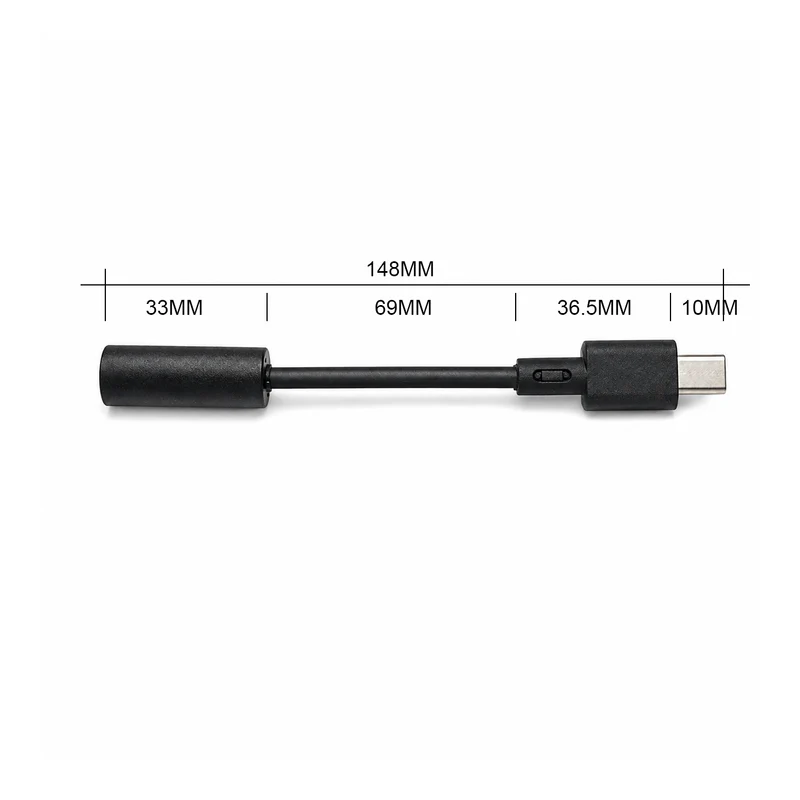

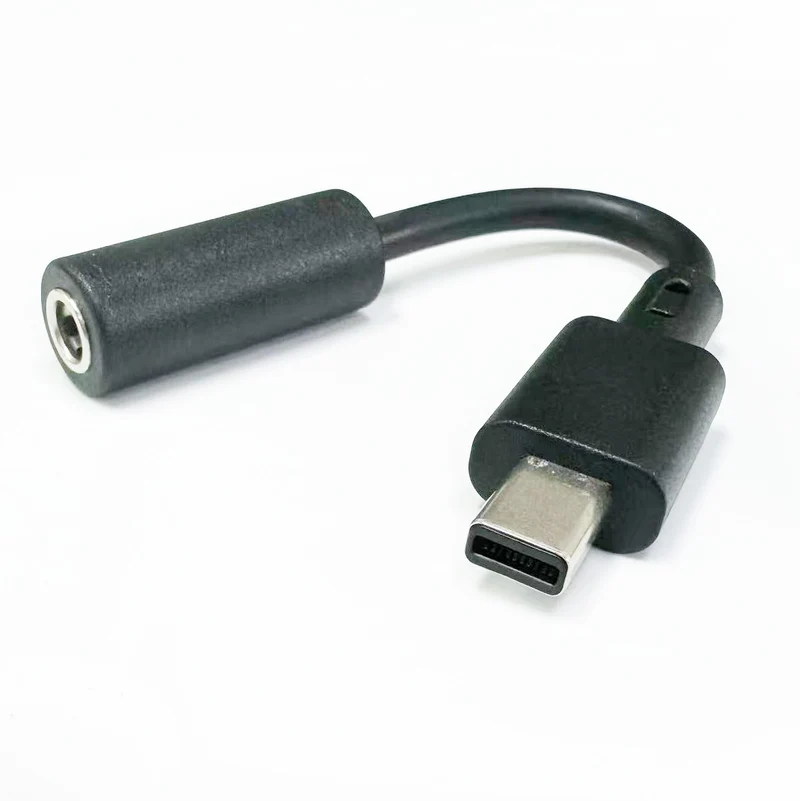

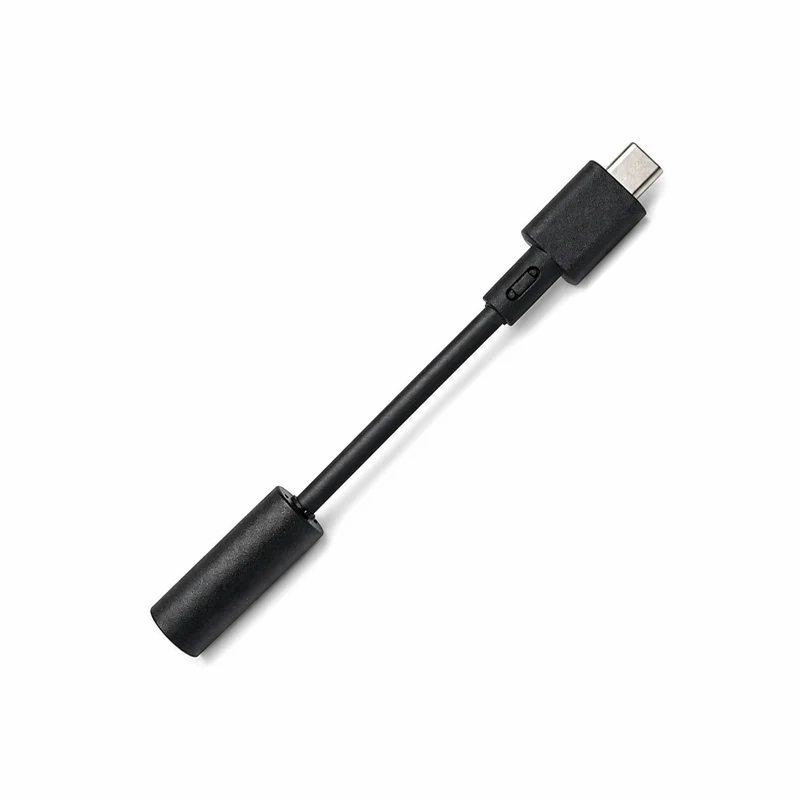

- Cable Connector — ASUS Mini Port ($19.99): Straight cable with added flexibility for desktop and workstation use.
- Tip Connector — ASUS Mini Port ($15.99): Ultra-compact tip that plugs directly into your laptop with no cable. Best for travel and minimalist setups.
Product Specifications

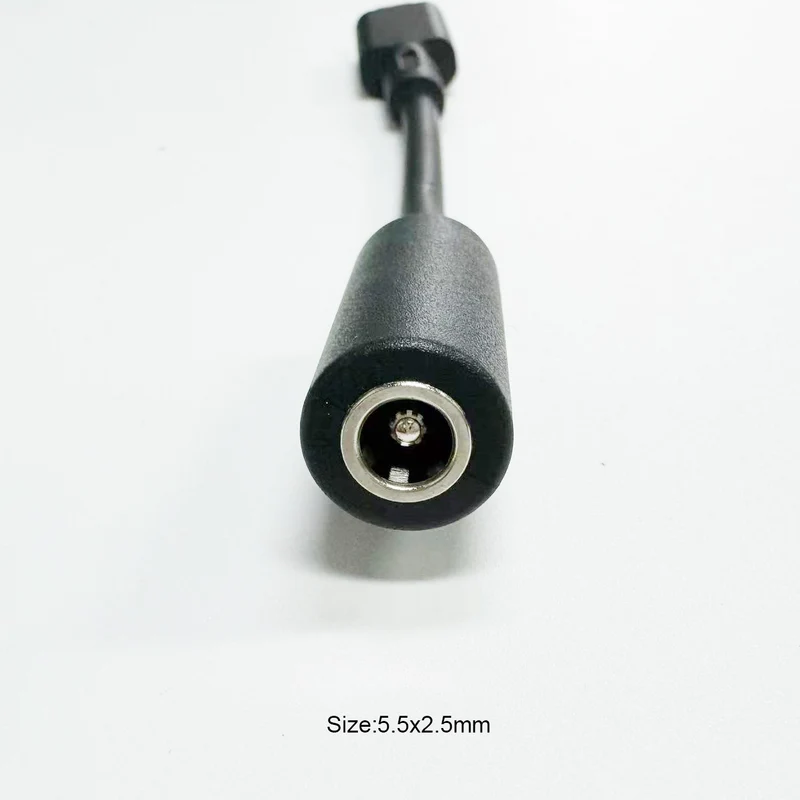

- Input Connector: DC 5.5 × 2.5mm

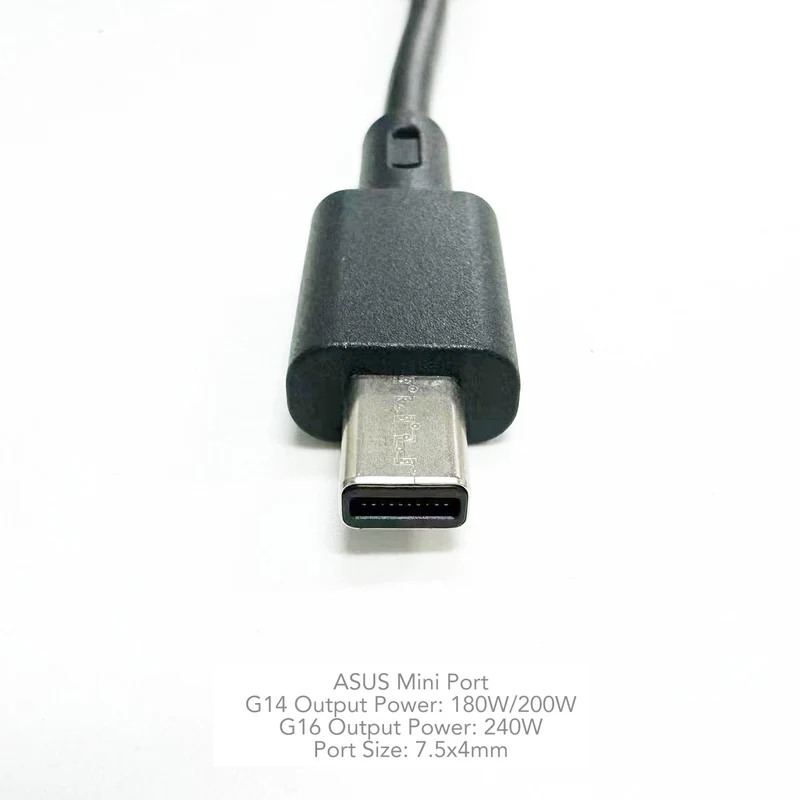

- Output Connector: ASUS Mini Port (Slim Power Jack), flat rectangular type
- Maximum Supported Power: 280W
- Compatible Series: ASUS ROG, TUF Gaming, ProArt, Zephyrus (2024–2025)
- Compatible Chargers: SlimQ 240W, 330W DC GaN chargers
- Plug-and-Play: Yes — no drivers required
- Net Weight: 50 g
- Country of Origin: China
Tested-Compatible ASUS Models
The following is a representative list and is not exhaustive. Always verify your laptop's connector shape and original charger wattage before purchasing.
| Max Power | Series and Representative Models |
|---|---|
| 280W | ROG Strix G18 (2025): G815LR, RTX 5070 and other 280W configurations; ROG Zephyrus G16 (2024): GU605MU / GU605MZ / GU605MY; TUF Gaming F16 (2025): FX608L / FX608LP / FX608LM / FX608J / FX608JP / FX608JM / FX608JH |
| 240W | TUF Gaming A16: FA608W / FA608WI / FA608WV; ROG Flow Z13 (2025): GZ302EA / ADP-240EB B; ProArt PZ13 / PX13 / P16 |
| 200W | TUF Gaming A14: FA401W / FA401WI / FA401WV / FA401WU; ROG Zephyrus G14 (2025): GA403UP / GA403WP / GA403WW / GA403WR; ROG Zephyrus G16 (2024): GA605W / GA605WV / GA605WI / GA605WU; GU605MV-QP161W |
| 180W | ROG Zephyrus G14 (2024): GA403UI / GA403UV / GA403UU, including GA403UI-XS96 and GA403UV-G14.R94060 |
Other variants within the same series may also be compatible if they use the same Mini Port connector and their original charger is rated at 280W or less. Contact us before purchasing if your exact model is not listed.
How to Confirm Compatibility
1. Check the Connector Shape
Your laptop must use the flat, rectangular Mini Port (Slim Power Jack) — not the older round barrel DC jack.
2. Check the Original Charger Wattage
This adapter supports up to 280W. Do not use with laptops or adapters requiring more than 280W.
3. Verify the Complete Model Number
Do not rely only on the series name or year of purchase. Check the complete model number on the bottom label or system information page. If unsure, contact us with your model number and we will confirm compatibility within one business day.
Frequently Asked Questions
Q: What is the ASUS Mini Port (Slim Power Jack)?
A: Starting in 2024, many new ASUS laptops — including ROG Zephyrus G14, G16, G18, TUF F16, A14, A16, and ProArt series — switched from the older round barrel DC jack to a new flat rectangular connector called the Mini Port or Slim Power Jack. This adapter bridges that connector to a standard 5.5 × 2.5mm DC charger output.
Q: Which variant should I choose — Cable, Tip, or L-shaped?
A: The Tip Connector is the most compact option, plugging directly into your laptop with no cable. The Cable Connector adds a short cable for more flexibility. The 90° L-Shaped Connector is ideal if your laptop's port faces a wall or tight space, reducing cable strain.
Q: Which SlimQ chargers work with this adapter?
A: This adapter is compatible with SlimQ 240W and 330W DC GaN chargers that feature a standard 5.5 × 2.5mm DC output port.
Q: Is this adapter compatible with 2023 or earlier ASUS laptops?
A: No. This adapter is designed specifically for the new flat Mini Port connector introduced in 2024. Most earlier ASUS laptops use the older round barrel DC jack and are not compatible.
If you don't know how to choose, please let us know. We will be happy to assist you. (Please be sure to specify your computer model and charger parameters)
Note: All dimensions are measured by hand, there may be small deviations.
